WebRTC

Introduction

The mms-server supports WebRTC WHIP and WHEP, enabling pushing and pulling streams via WebRTC.

Configuration

1. Configure WebRTC in config/mms.yaml:

webrtc:
  enabled: true
  udp_port: 8878                # UDP port for WebRTC (port 3348 is used for STUN and enabled by default)
  ip: 192.168.108.211           # IP to listen on
  internal_ip: 192.168.108.211  # Used for isolated environments like Alibaba Cloud

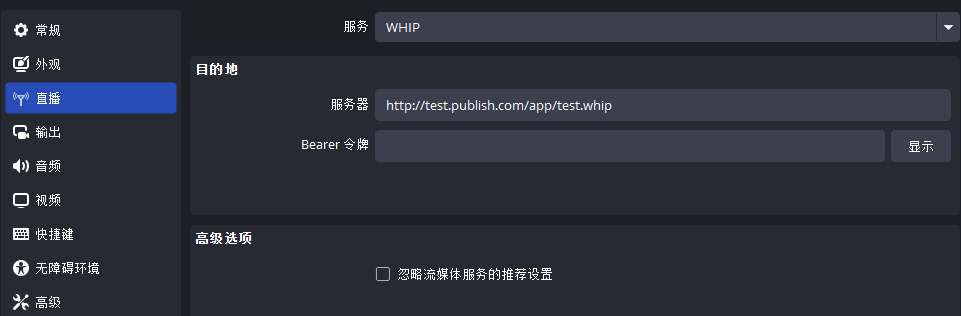

2. Pushing streams: You can use OBS to push streams via WHIP: Stream URL format: http://domain/app/stream.whip As shown below:

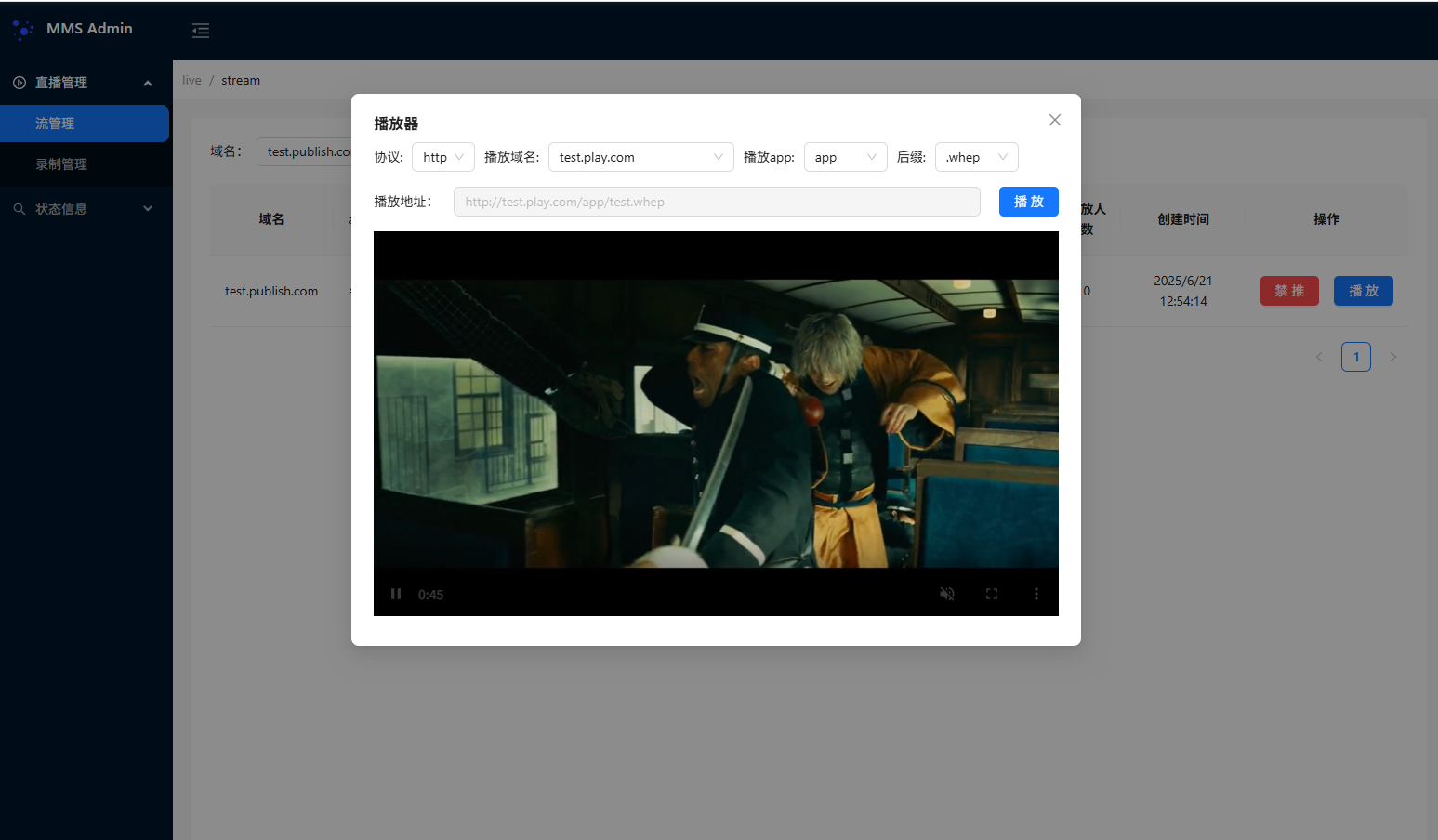

3. Playing (Pulling streams): You can use the standalone console of mms-server to play the stream:

4. RTMP to WebRTC: Refer to RTMP to WebRTC
